Description

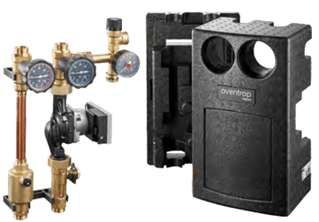

Complete solar station “Regusol MIDI ELH-130 – Station DN 25”
Κωδικός: 247.1360557

for installations with up to 110 m² gross collector surface*

A station that provides the circulation of closed loops for split installations, while the controller programs the automation and controls the solar circuit (to storage tanks or heat exchanger)

Includes: inverter pump WILO – Yonos PARA ST 25/7.5 PWM, with flowmeter (7 – 30L/min) and valve for filling – emptying, two thermometers, safety non-return valve, ventilation tube with manual function, safety group with pressure valve of 6bar, manometer 0-10bar, ¾’’ outlets, connection kit for the expansion vase and mounting set for wall mounting.

included:
1 Χ collector sensor
1 Χ tank sensor

Connections Up / bottom: 1′ male
Dimensions H x W: DN25 375mm x 250mm
Material: Brass
Cover: ΕΡΡ insulating box
Μaximum working pressure: 6 bar
Maximum working temperature: 120°C

* up to 50 m2 of collector surface when flow is High: 0,7l/min and instalaltion height Η: 6m
up to 110 m2 of collector surface when flow is Low: 0,3l/min and instalaltion height Η: 6m
